iOS程序启动过程,视图加载UIWindow与ViewController

初步了解了iOS程序的启动过程、UIApplication和AppDelegate后,就要开始步入正题了,界面的显示问题。开启主运行循环后,会看Info.plist文件是否指定了main storyboard,有则加载。加载storyboard会创建UIWindow对象,再将默认的ViewController设置为该window的根控制器,然后将ViewController的view可视化。


程序启动过程延伸

main函数执行UIApplicationMain():

  1. 创建UIApplication对象
  2. 创建代理对象,设置为UIApplication的代理
  3. 开启事件循环

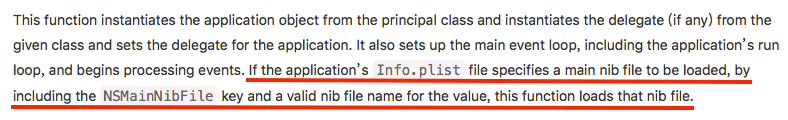

  4. 加载Info.plist文件,如果指定了Main, 就去加载

默认是指定了Main storyboard的. Main Storyboard的初始化过程

UIWindow

它是一种特殊的UIView,一个app中至少会有一个UIWindow。

iOS程序启动完毕后,创建的第一个视图控件就是UIWindow,接着创建控制器的view,最后将view添加到UIWindow上,于是控制器的view就显示到屏幕上了。

没有UIWindow,就看不到任何UI界面

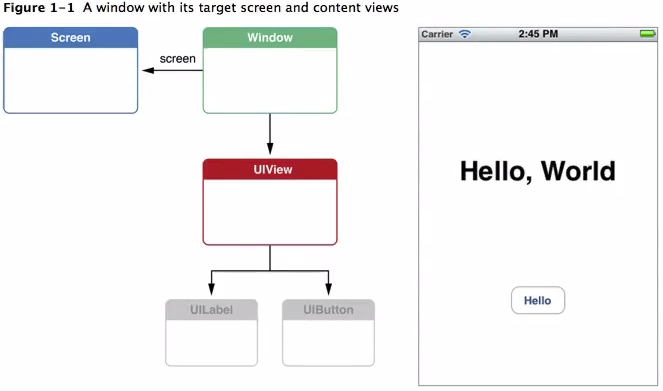

A UIScreen object that identifies a physical screen connected to the device. A UIWindow object that provides drawing support fot the screen. A set of UIView objects to perform the drawing. These objects are attached to the window and draw their contents when the window asks them to.

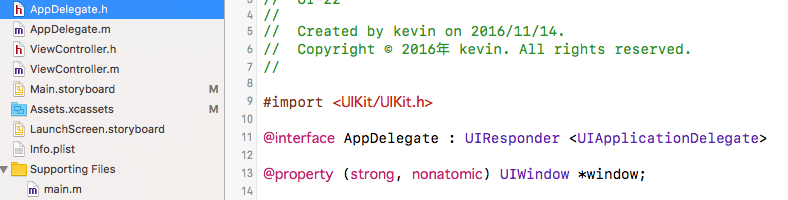

不指定Main storyboard, 自己初始化window

在代理AppDelegate.m里,程序启动完成后调用:

// 1.实例化一个window(创建窗口对象) 注意点:1.不能是局部变量 2.必须设置窗口的尺寸
_window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];
// _window.backgroundColor = [UIColor redColor];

// 2.创建窗口的根控制器, 并赋值
// 对应界面的事情,交给对应的控制器管理
UIViewController* rootVc = [[UIViewController alloc] init];
rootVc.view.backgroundColor = [UIColor greenColor];

UIButton* btn = [UIButton buttonWithType: UIButtonTypeContactAdd];
btn.center = CGPointMake(50, 50);
[rootVc.view addSubview:btn];

// 一旦设置窗口的根控制器,就会把根控制器的view添加到窗口
_window.rootViewController = rootVc;

// 3.显示窗口 显示窗口_window.hidden = NO;成为主窗口application.keyWindow = _window;
[_window makeKeyAndVisible];

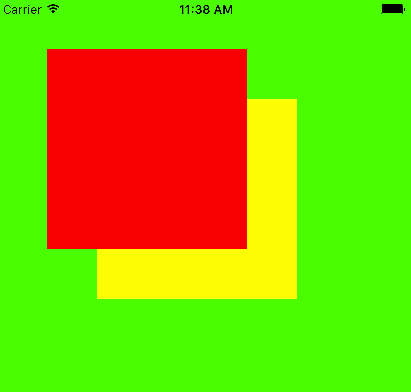

多个窗口与层级

// 1.创建窗口
_window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];
_window.backgroundColor = [UIColor greenColor];

// 2.设置窗口的根控制器
UIViewController* rootVc = [[UIViewController alloc] init];
_window.rootViewController = rootVc;

// 3.显示窗口
[_window makeKeyAndVisible];

// 创建第二个窗口
_window1 = [[UIWindow alloc] initWithFrame:CGRectMake(50, 50, 200, 200)];
_window1.backgroundColor = [UIColor redColor];
UIViewController* rootVc1 = [[UIViewController alloc] init];
_window1.rootViewController = rootVc1;
_window1.hidden = NO;
_window1.windowLevel = UIWindowLevelAlert+1;

// 创建第3个窗口
_window2 = [[UIWindow alloc] initWithFrame:CGRectMake(100, 100, 200, 200)];
_window2.backgroundColor = [UIColor yellowColor];
UIViewController* rootVc2 = [[UIViewController alloc] init];
_window2.rootViewController = rootVc2;
_window2.hidden = NO;
_window2.windowLevel = UIWindowLevelAlert;

NSLog(@"%@", application.windows);


手动加载默认的storyboard,通过storyboard创建控制器

// 1.创建window
_window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];

// 2.加载main.storyboard, 创建mian.storyboard描述的控制器
// UIStoryboard专门用来加载storyboard
UIStoryboard* storyboard = [UIStoryboard storyboardWithName:@"Main" bundle:nil];
// 加载storyboard描述的控制器,默认会加载箭头指向的viewController
UIViewController* vc = [storyboard instantiateInitialViewController];
_window.rootViewController = vc;

// 3.显示窗口
[_window makeKeyAndVisible];

通过xib创建控制器

// xib加载控制器步骤,有view去描述控制器,让xib和控制器产生联系,告诉xib是用来描述一个控制器的
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  // Override point for customization after application launch.

  // 为什么通过xib或者storyboard
  _window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];

  UIViewController* vc = [[ViewController alloc] initWithNibName:@"VC" bundle:nil];

  _window.rootViewController = vc;

  [_window makeKeyAndVisible];

  return YES;
}

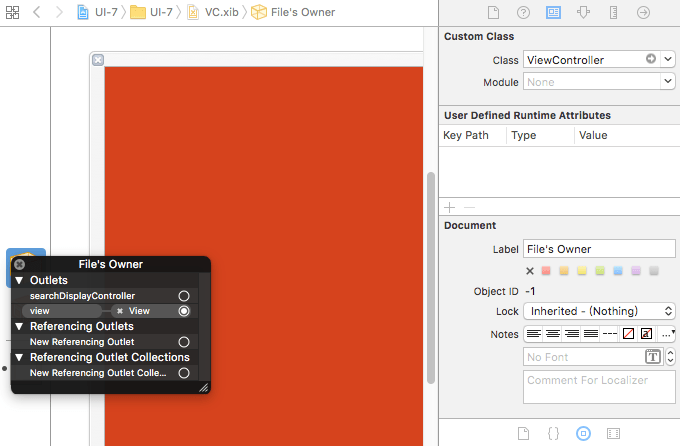

VC.xib 相关设置:
