2016/11/08
Author: guoqzuo

iOS 自定义UITextField类(国旗、生日、城市键盘)

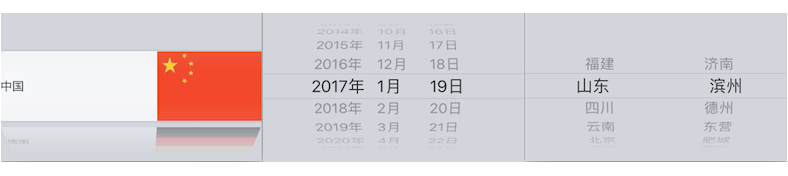

前面介绍了PickerView的简单用法,这里用PickerView和DatePicker来自定义UITextField类,让输入框的inputView不再是键盘,而是选择器。接下来会介绍三种基于选择器的封装键盘类: 国旗键盘、日期键盘、城市键盘。


封装国旗键盘

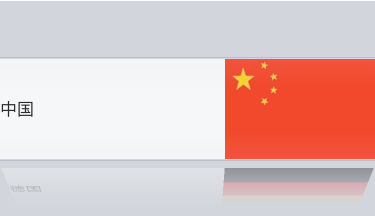

为什么要封装? 如果不封装为一个类,从storyboard将UITextField拖拽到对应的ViewController进行相关设置。代码会很混乱,且可移植性差。如果封装为一个UITextField类以后,只要设置UITextField的类为该封装类就可以调用国旗键盘,非常方便。这里我们创建一个UITextfield的子类FlagField,用来封装国旗键盘。默认的UITextField只要获取焦点就弹出一个键盘,可以用self.inputView方法指定弹出的view,只要是UIView都行。这里我们会将它的inputView设置为PickerView,国旗键盘只有一列,每一行都是label+ImageView,用xib来表示。效果如下:


在什么时候修改inputView

也就是将默认弹出的键盘修改为UIpickView,当UITextField从storyboard或xib加载时,会调用- (void)awakeFromNib方法,重写该方法初始化


实现<UIPickerViewDataSource, UIPickerViewDelegate>相关方法

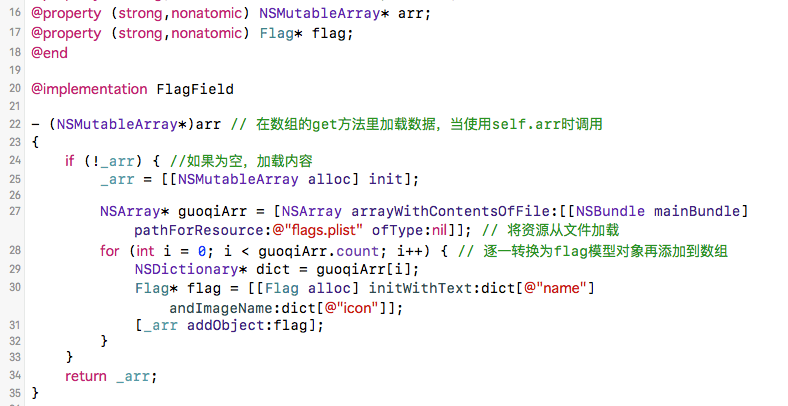

  1. 准备数据(从资源文件导入,里面存放了国家,与对应的国旗),将资源文件加载到数组,建立相关模型,这里没有用kvc将字典直接转为对象,后面会使用。

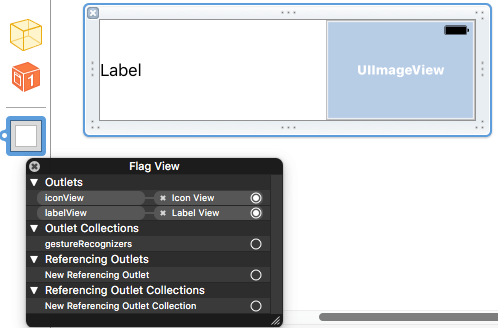

  1. 设置每行的UIView, 自定义UIView类FlagView,创建时勾选创建xib。高度100,宽度375: 225+150,只是在4.7寸上模拟,没有加界面约束。



  1. 设置pickerView的数据源和代理,数据加载


  1. 扩展:KVC, dict -> model,上面的数据转模型的时候可以只用字典初始化数据。
- (NSArray*)flags
{
    if (_flags == nil) {
        _flags = [[NSMutableArray alloc] init];
        // 1.拿到filePath
        NSString* filePath = [[NSBundle mainBundle] pathForResource:@"flags.plist" ofType:nil];
        // 2.根据filePath创建JSON数据
        NSArray* dictArr = [NSArray arrayWithContentsOfFile:filePath];
        // 3.dict -> model
        for (NSDictionary* dict in dictArr) {
            id obj = [Flag flagWithDict:dict];
            [_flags addObject:obj];
        }
    }
    return _flags;
}

Flag.h

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>

@interface Flag : NSObject

@property (nonatomic, strong) NSString* name;
@property (nonatomic, strong) UIImage* icon;

+ (instancetype)flagWithDict:(NSDictionary *)dict;

@end

Flag.m

#import "Flag.h"

@implementation Flag

+ (instancetype)flagWithDict:(NSDictionary *)dict
{
    Flag* flag = [[self alloc] init];

    // kvc
    //[flag setValuesForKeysWithDictionary:dict];
    [dict enumerateKeysAndObjectsUsingBlock:^(id  _Nonnull key, id  _Nonnull obj, BOOL * _Nonnull stop) {
        // kvc
        [flag setValue:obj forKey:key];
    }];
    return flag;
}

// [flag setValue:@"agt.gif" forKey:@"icon"];
- (void)setIcon:(NSString *)icon
{
    _icon = [UIImage imageNamed:[NSString stringWithFormat:@"guoqi/%@", icon]];
}
@end

封装日期键盘

与上面相比,日期键盘就简单多了,不用考虑什么协议,代理数据源。稍微不同的地方

- (void)setUp
{
    _datePicker = [[UIDatePicker alloc] init];
    _datePicker.datePickerMode = UIDatePickerModeDate; // 模式显示
    _datePicker.locale = [NSLocale localeWithLocaleIdentifier:@"zh"]; // 设置为中文
    // 添加控制器,监听选泽
    [_datePicker addTarget:self action:@selector(dateChange) forControlEvents:UIControlEventValueChanged];
    self.inputView = _datePicker;
}

// UIDatePicker选中时调用
- (void)dateChange
{
    //NSLog(@"%s", __func__);
    NSLog(@"%@", _datePicker.date);
    // 创建一个日期格式字符串对象
    NSDateFormatter* fmt = [[NSDateFormatter alloc] init];
    fmt.dateFormat = @"yyyy-MM-dd";
    self.text = [fmt stringFromDate:_datePicker.date];
}

// 初始化文本
- (void)initialWithText
{
   [self dateChange];
}

封装城市键盘

这里有一个二级联动需要注意,其它差不多,要养成写注释的习惯,不然思维容易混乱。这里行列设置有点晕。

CityFeild.m

#import "CityField.h"
#import "City.h"

@interface CityField () <UIPickerViewDataSource, UIPickerViewDelegate>

@property (nonatomic, strong)UIPickerView* pickView;
@property (nonatomic, strong)NSMutableArray* citys;
@property (nonatomic, assign)NSInteger currentRow;
@property (nonatomic, assign)BOOL isInitial;

@end

@implementation CityField

- (void)awakeFromNib
{
    [self setUp];
}

- (instancetype)initWithFrame:(CGRect)frame
{
    if (self = [super initWithFrame:frame]) {
        [self setUp];
    }
    return self;
}

- (NSMutableArray*)citys
{
    if (_citys == nil) {
        _citys = [[NSMutableArray alloc] init];
        NSString* filePath = [[NSBundle mainBundle] pathForResource:@"provinces.plist" ofType:nil];
        NSArray* dictArr = [NSArray arrayWithContentsOfFile:filePath];
        for (id dict in dictArr) {
            id obj = [City cityWithDict:dict];
            [_citys addObject:obj];
        }
    }
    return _citys;
}

- (void)setUp
{
    self.pickView = [[UIPickerView alloc] init];
    self.pickView.delegate = self;
    self.pickView.dataSource = self;
    //NSLog(@"%@", self.citys);

    self.inputView = _pickView;
}

#pragma mark - UIPickerViewDataSource

- (NSInteger)numberOfComponentsInPickerView:(UIPickerView *)pickerView
{
    return 2;
}

- (NSInteger)pickerView:(UIPickerView *)pickerView numberOfRowsInComponent:(NSInteger)component
{
    if (component == 0) // 省份
        return self.citys.count;
    else {
        City* tempCity = self.citys[_currentRow];
        return tempCity.cities.count;
    }
}

#pragma mark - UIPickerViewDelegate

- (NSString*)pickerView:(UIPickerView *)pickerView titleForRow:(NSInteger)row forComponent:(NSInteger)component
{
    if (component == 0) { // 省会名称
        City* tempCity = self.citys[row];
        return tempCity.name;
    } else { // 省会下的城市
        City* c = self.citys[_currentRow];
        return c.cities[row];
    }
}

- (void)pickerView:(UIPickerView *)pickerView didSelectRow:(NSInteger)row inComponent:(NSInteger)component
{
    if (component == 0) { // 滚动省份
        _currentRow = row; // 记录省份
        // 刷新第一列的城市
        [pickerView reloadComponent:1]; // 刷新第一列,重新选择第1列第0行默认选中
        [pickerView selectRow:0 inComponent:1 animated:YES];
    }

    City* c = self.citys[_currentRow];
    // 获取第0列选中的省会
    NSString* province = c.name;
    // 获取第1列选中的城市
    NSInteger row1 = [pickerView selectedRowInComponent:1];
    NSString* city1 = c.cities[row1];

    self.text = [NSString stringWithFormat:@"%@-%@", province, city1];
}

// 初始化文本
- (void)initialWithText
{
    if (_isInitial == NO) {
        [self pickerView:self.pickView didSelectRow:0 inComponent:0];
        _isInitial = YES;
    }
}

@end

City.h

#import <Foundation/Foundation.h>
#import <UIKit/UIKit.h>

@interface City : NSObject

@property (nonatomic, strong)NSString* name;
@property (nonatomic, strong)NSArray* cities;

+ (instancetype)cityWithDict:(NSDictionary*)dict;

@end

City.m

#import "City.h"

@implementation City

+ (instancetype)cityWithDict:(NSDictionary *)dict
{
    City* city = [[self alloc] init];

    //kvc
    [city setValuesForKeysWithDictionary:dict];

    return city;
}

@end

综合(设置初始值,监听过滤输入)

ViewController.m

#import "ViewController.h"
#import "FlagFeild.h"
#import "BirthdayFeild.h"
#import "CityField.h"

@interface ViewController () <UITextFieldDelegate>

@property (weak, nonatomic) IBOutlet FlagFeild *flagFeild;
@property (weak, nonatomic) IBOutlet BirthdayFeild *birthdayFeild;
@property (weak, nonatomic) IBOutlet CityField *cityFeild;

@end

@implementation ViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    _flagFeild.delegate = self;
    _birthdayFeild.delegate = self;
    _cityFeild.delegate = self;
    // Do any additional setup after loading the view, typically from a nib.
}

- (void)didReceiveMemoryWarning {
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

// 是否允许用户输入文字,拦截用户输入, 每次输入都会询问代理,是否允许更改文本框内容
- (BOOL)textField:(UITextField *)textField shouldChangeCharactersInRange:(NSRange)range replacementString:(NSString *)string
{
    return NO;
}

@end
