骨架屏研究

目前骨架屏在app端用的比较多,主要是从国外转过来的。国内大厂JD、知乎、淘宝等都有用,相比原来用loading 菊花图来表示加载中,骨架屏用户体验更好一点,这里我们来自己实现一个简单的骨架屏样式效果


实现的思路是使用background-image线性渐变来做动画效果,下面是一个比较简单的实现:

<head>
  <style>
    .fast-loading {
      height: 20px;
      margin: 10px 0;
      width: 200px;
      background-color: rgb(245, 245, 245);
      background-image: repeating-linear-gradient(90deg, #eee, #f5f5f5 100%);

      animation-name: fastLoading;
      animation-timing-function: linear;
      animation-duration: 1s;
      animation-iteration-count: infinite;
    }
    @keyframes fastLoading {
      from {
        background-position: 0 0;
      }
      to {
        background-position: 100px 0;
      }
    }
    .w100 { width: 100% }
    .w80 { width: 80% }
    .w60 { width: 60% }
    .w40 { width: 50% }
    .w30 { width: 30% }
  </style>
</head>
<body>
  <div style="width: 50%;margin: 50px auto;">
    <div class="fast-loading"></div>
    <div class="fast-loading w40"></div>
    <div class="fast-loading w80"></div>
    <div class="fast-loading w60"></div>
    <div class="fast-loading w30"></div>
    <div class="fast-loading w30"></div>
    <div class="fast-loading w50"></div>
    <div class="fast-loading w60"></div>
  </div>
</body>

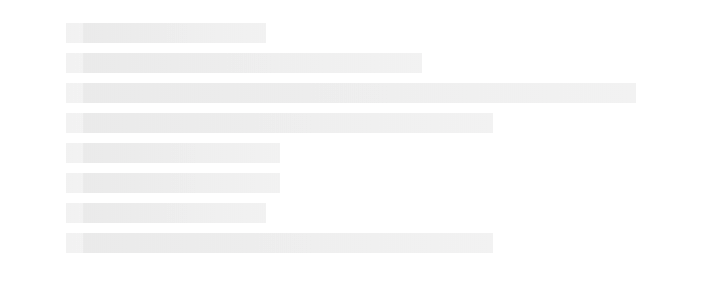

在线演示色地址: https://zuoxiaobai.github.io/fedemo/src/DebugDemo/简单的骨架屏/index.html
